Modern Fiat vehicles equipped with the Security Gateway (SGW) require authorized access before technicians can perform advanced diagnostic and service functions. With Launch X431 diagnostic platform, unlocking the SGW and completing longitudinal and lateral sensor calibration is both simple and efficient.
In this guide, we’ll demonstrate the calibration procedure on a 2023 Fiat Strada.
Vehicle Information
2023/Fiat/Strada
Compatible Devices
This function is available on comprehensive Launch X431 diagnostic scanners, including X431 PAD IX LINK, X431 PAD V, X431 PAD VII, X431 PRO5
Other advanced Launch X431 scanners with FCA SGW authorization

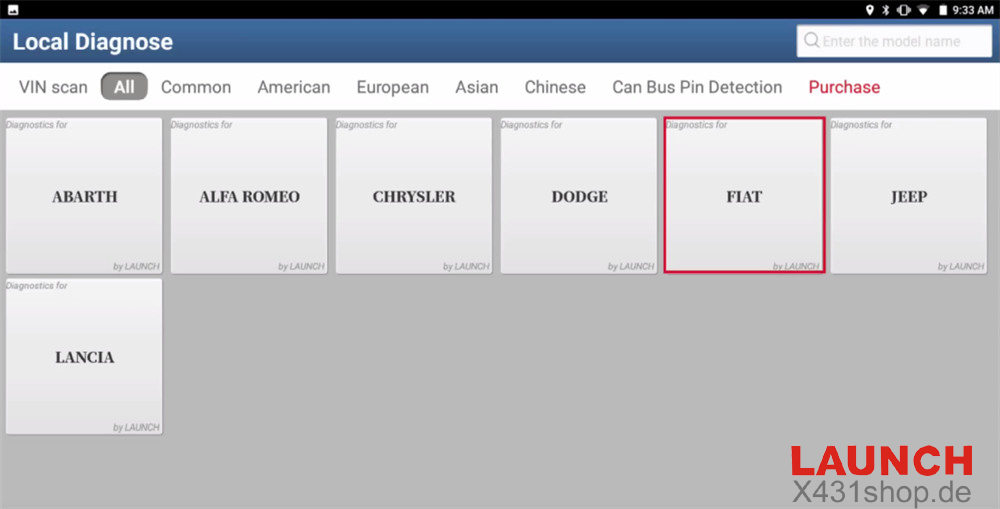

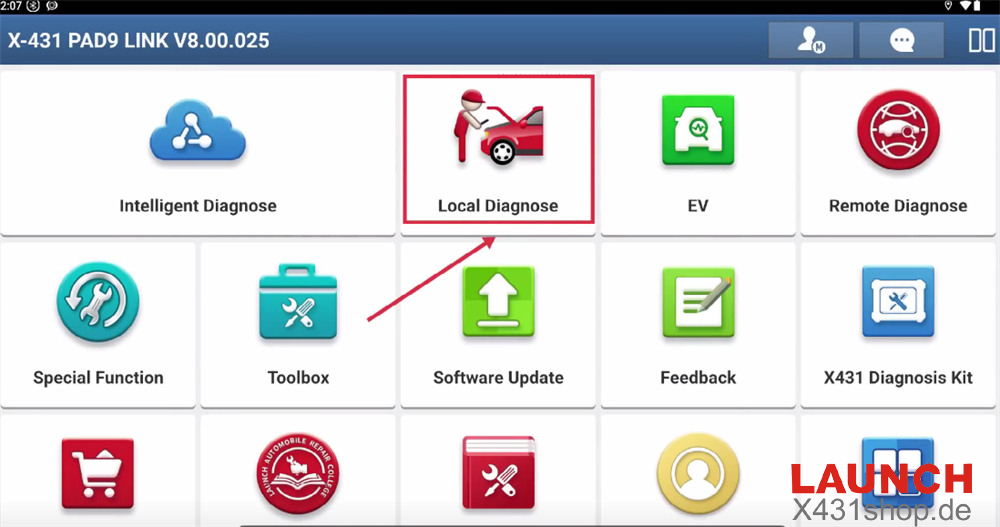

Operation Path Navigation [Local Diagnose] – [FIAT] – [Automatically Search]

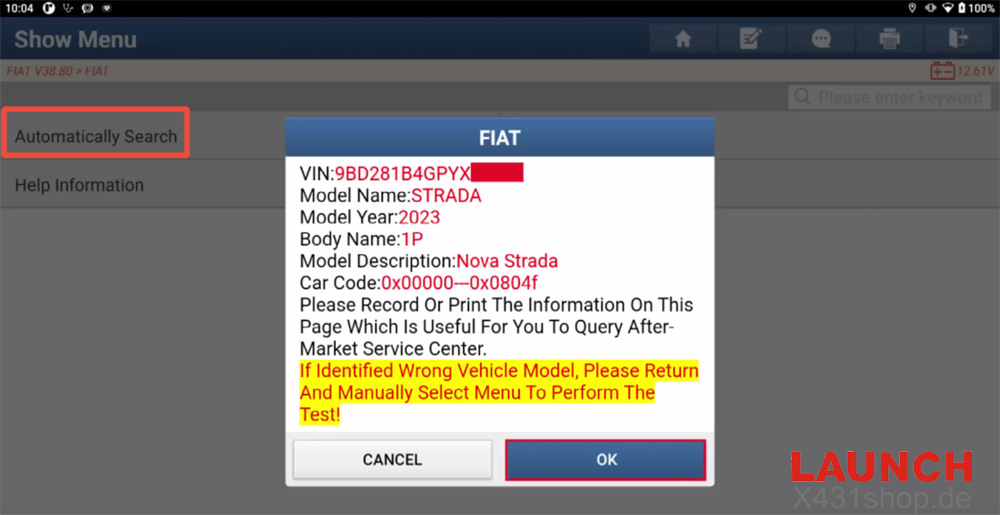

Confirm the vehicle info

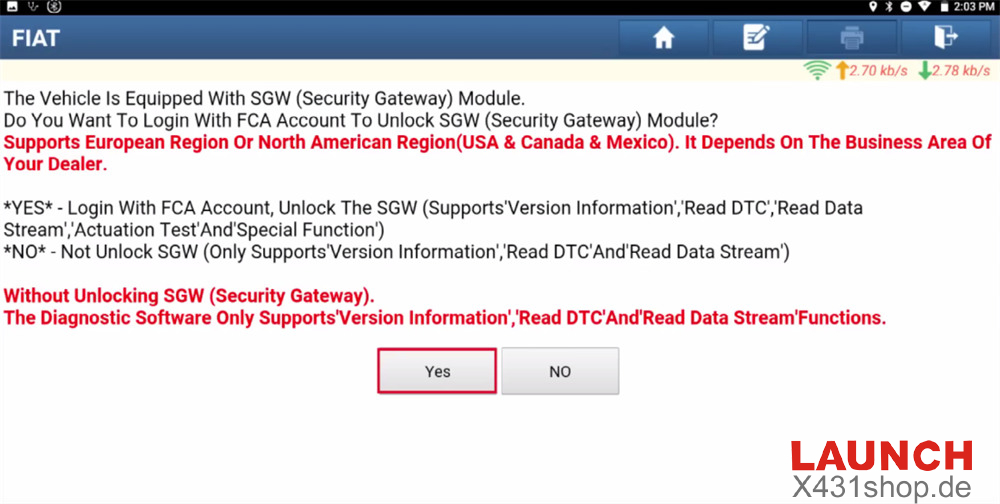

Click “Yes” to login with FCA account to unlock FIAT SGW

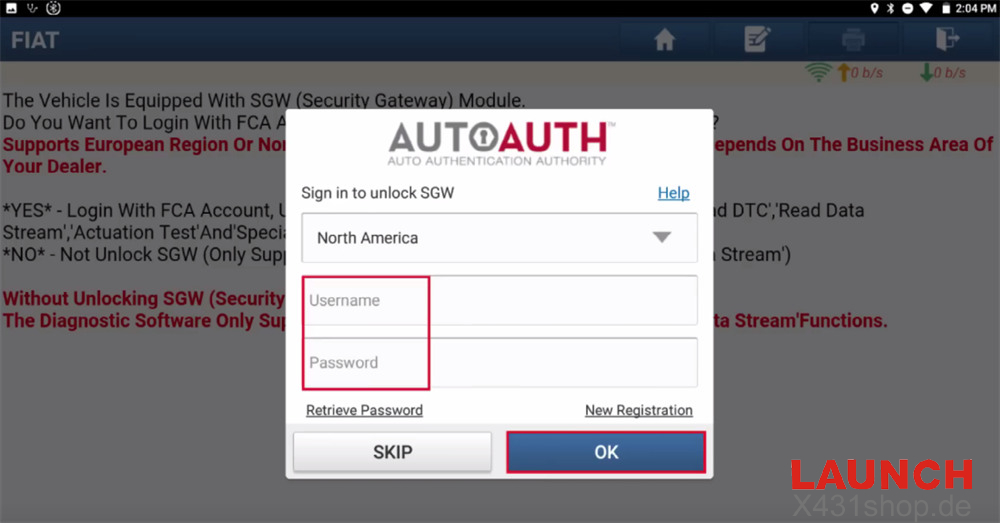

Select region (North America), input username and password

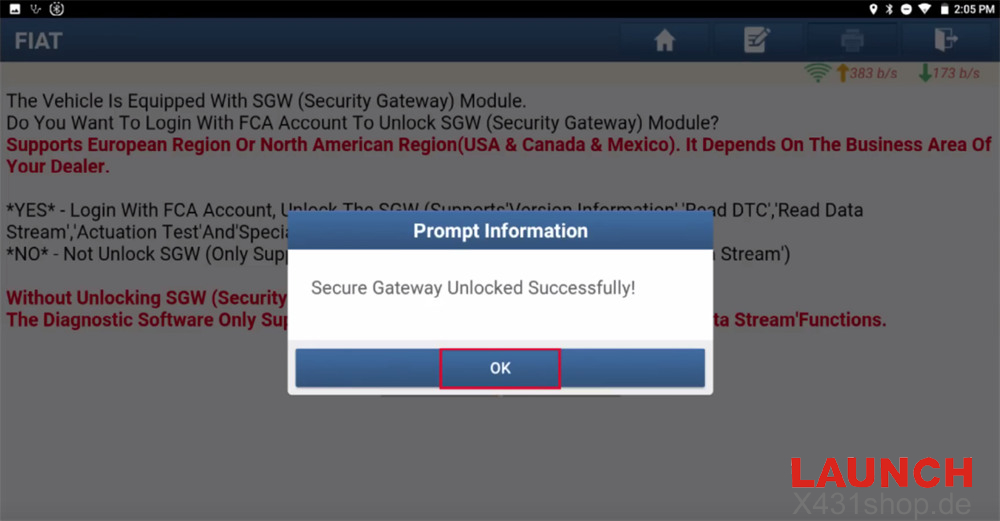

Unlock SGW successfully

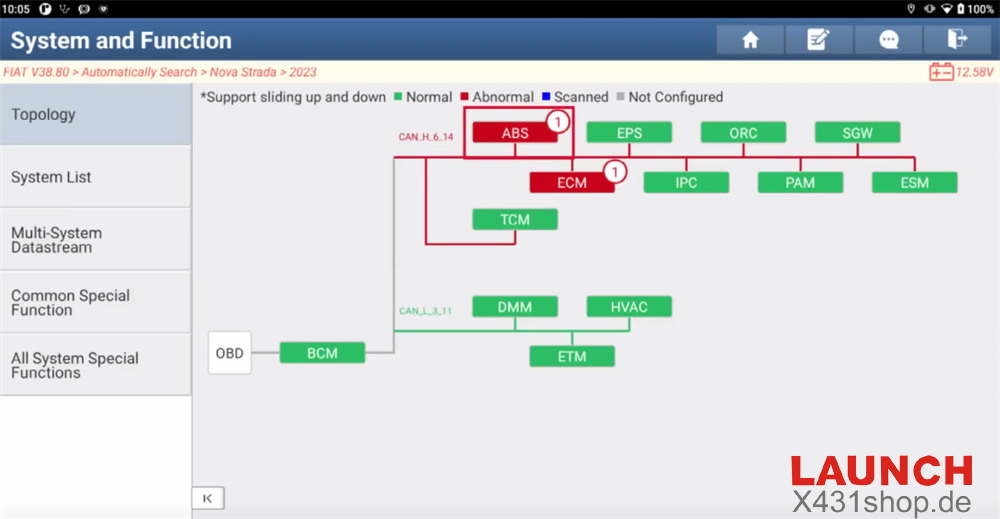

Click Smart Detection to scan the entire vehicle system
Click [ABS (Anti-Lock Braking System) to access the system

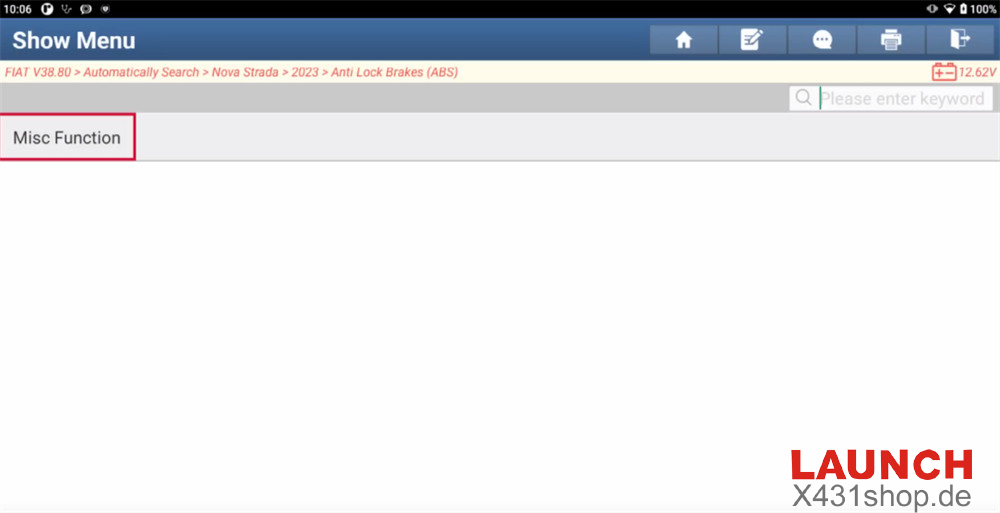

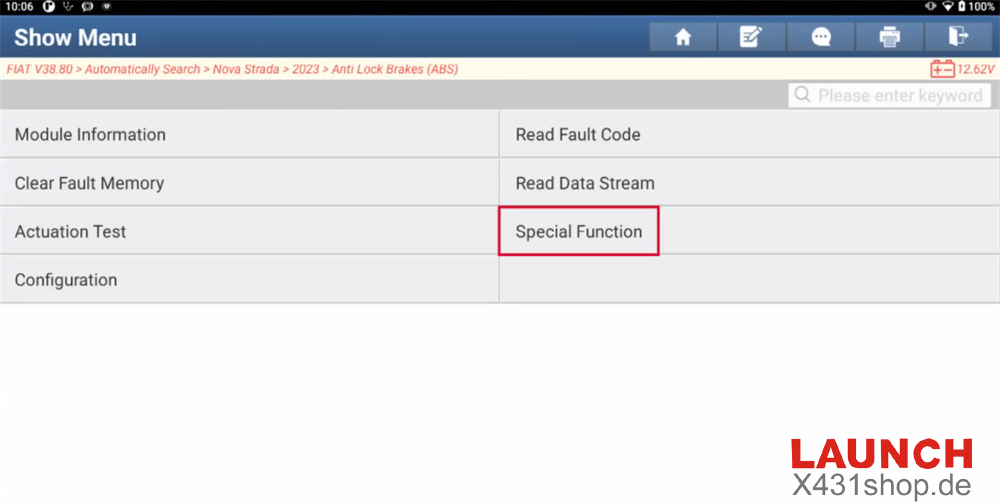

Choose Special Function-> Misc Function

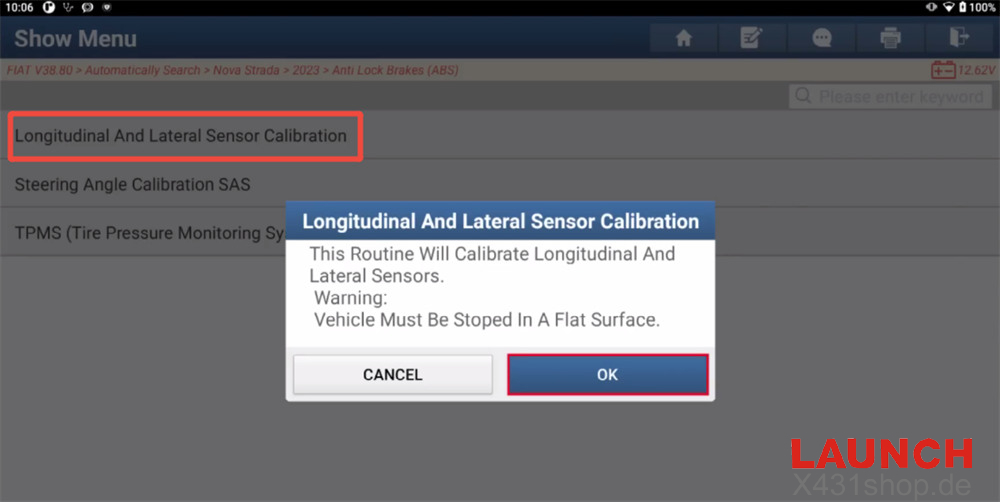

Choose Longitudinal And Lateral Sensor Calibration
Warning:
Vehicle must be stopped in a flat surface.
Wait for the countdown to the end

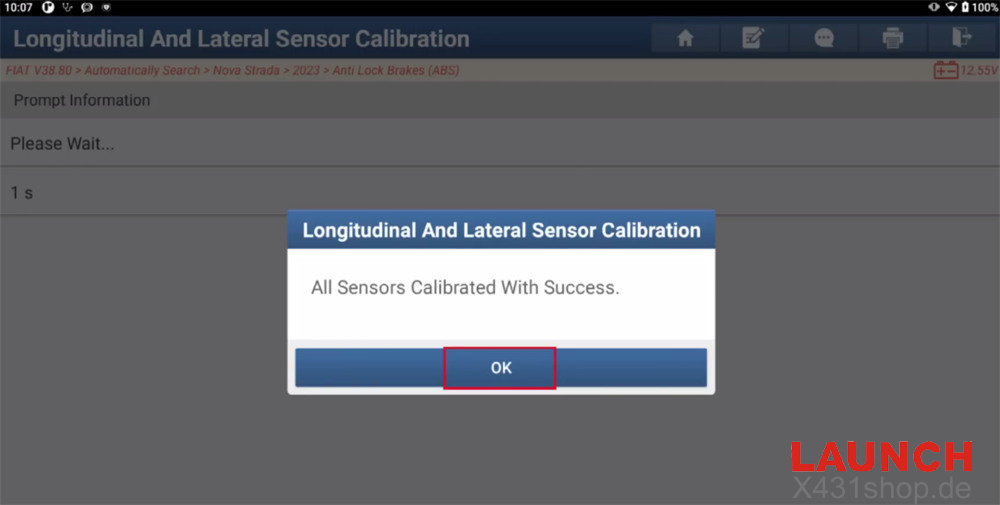

All sensors calibrated with success
