How to Clone Citroen MG1CS042 ECU with Launch X431 X-Prog3 PC Adapter?

October 12, 2026 admin X431 IMMO Tools 0

You can quickly clone a Citroen MG1CS042 ECU on bench using Launch X431 X-Prog3 and PC Adapter.

Here is the step-by-step process:
Step 1: Connect X431 PC Adapter to your PC and X-Prog3 unit.

Step 2: Open X-Prog3 PC Adapter software (version 10.52).

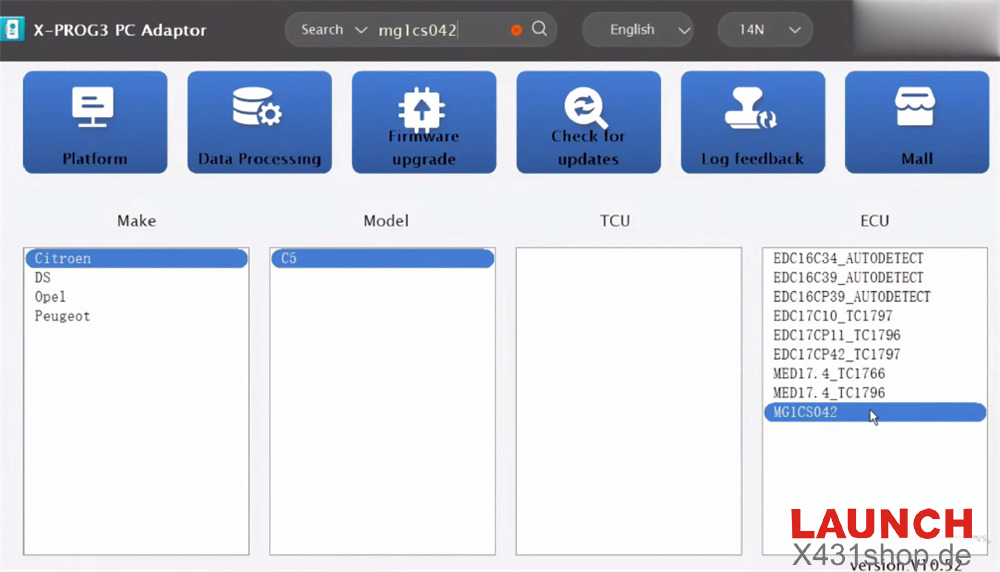

Step 3: Search for “mg1cs042” and choose “Citroen C5 MG1CS042”.

Step 4: Pick “Bench” as your connection method.

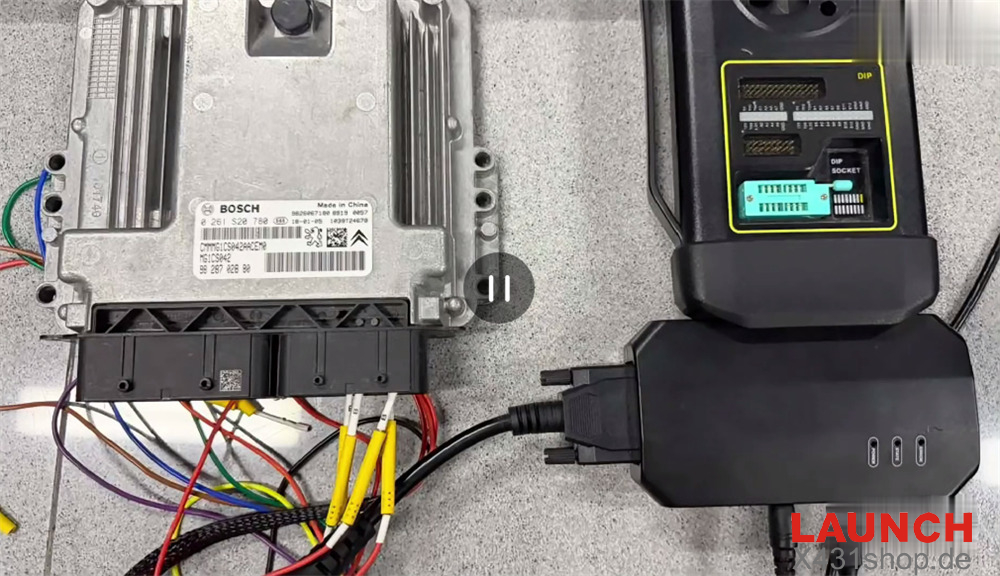

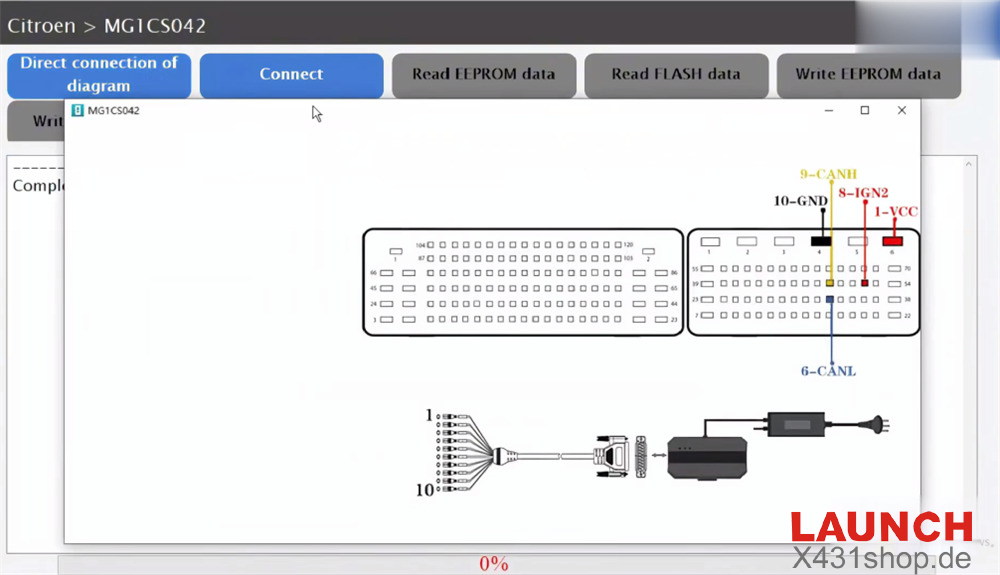

Step 5: Wire the ECU to the adapter following the direct connection diagram

  • VCC -> Pin 1
  • CANL -> Pin 6
  • IGN2 -> Pin 8
  • CANH -> Pin 9
  • GND -> Pin 10

Apply external power

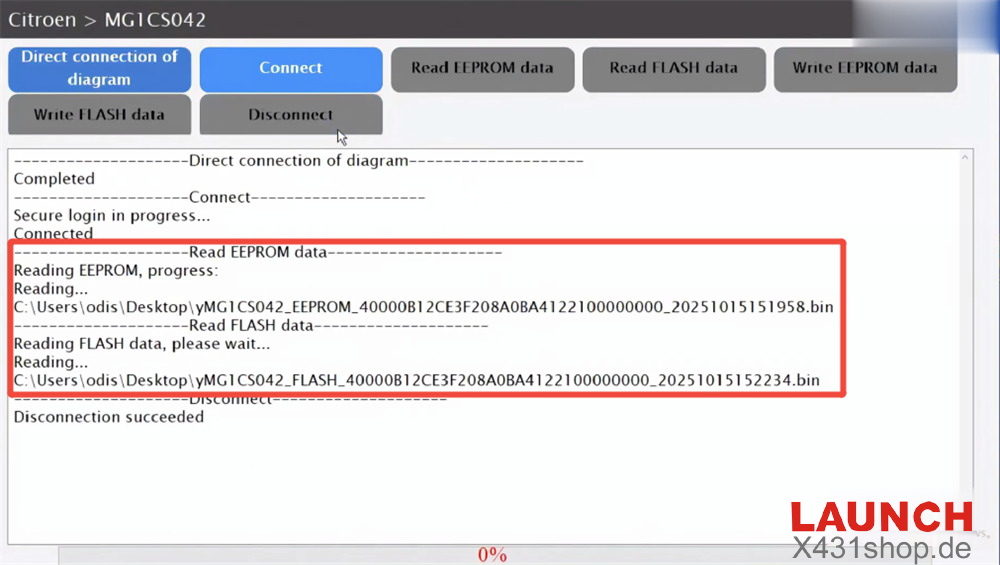

Step 6: Read the EEPROM and FLASH files from the original ECU and save them to your computer

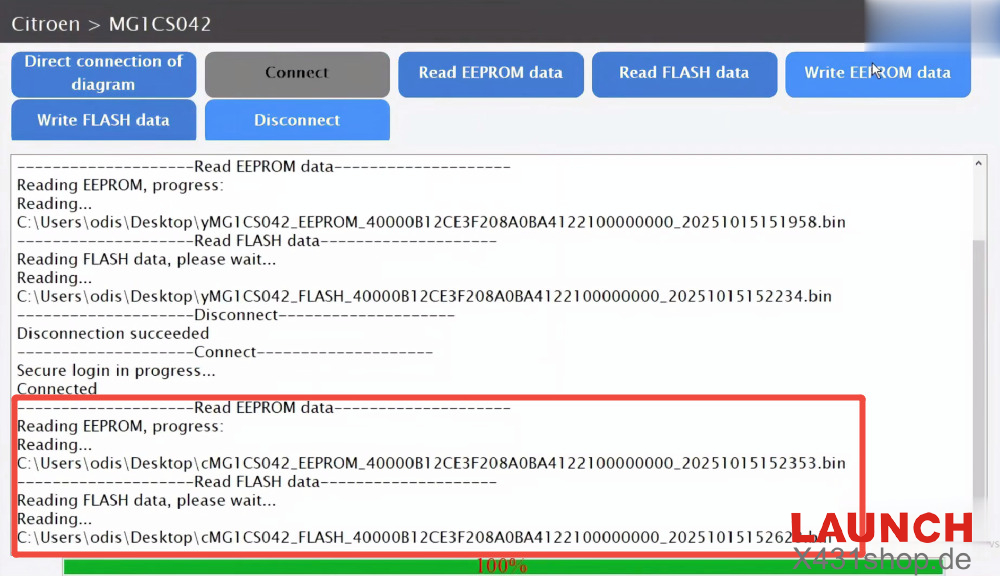

Step 7: Unplug the original ECU. Connect the donor ECU, then read and back up its data.

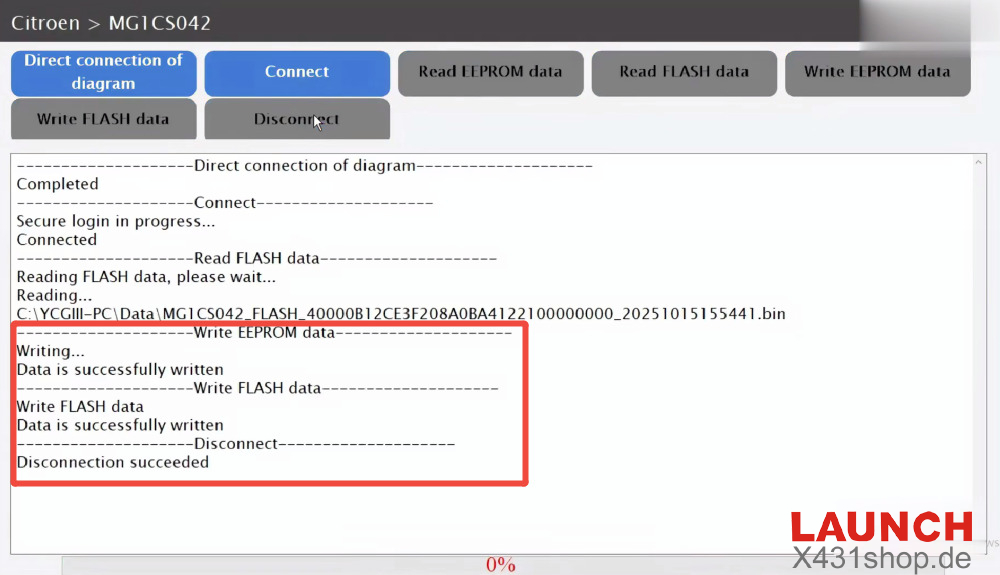

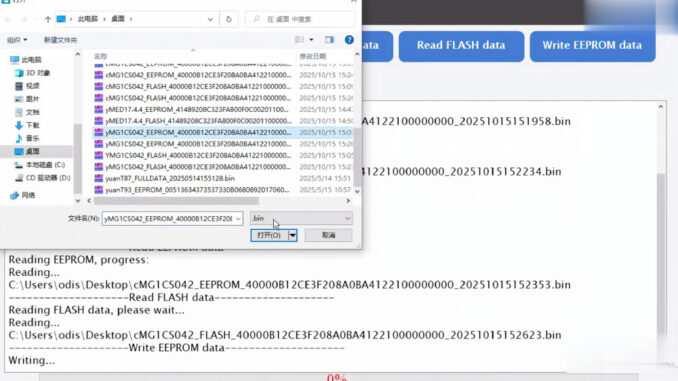

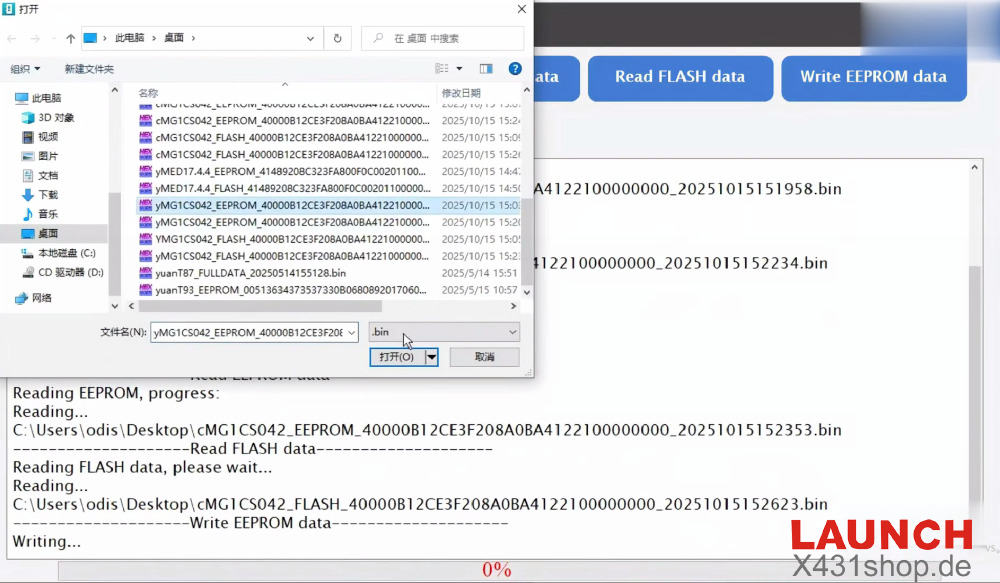

Step 8: Write the original EEPROM and FLASH files into the donor ECU

The cloning process is complete, and the new ECU is ready to use.
