Looking to add heavy-duty diagnostic support to your LAUNCH X431 tablet?
Both SmartLink C HD V2 and SmartLink C HD LITE V2 use the same SmartLink C V4 hardware platform and deliver identical core features. Here is how they compare.
Comparison Table:

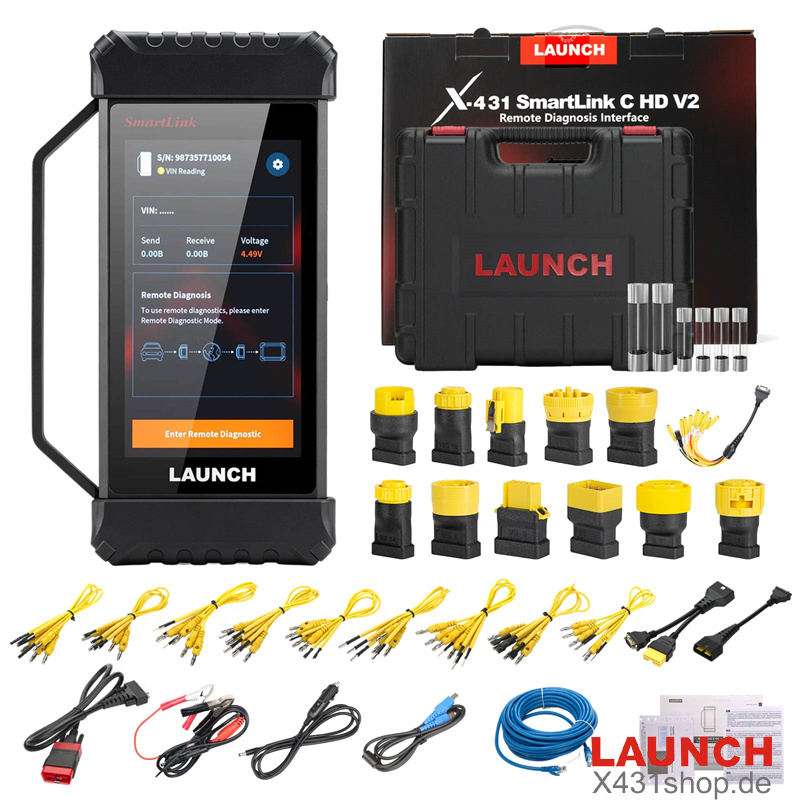

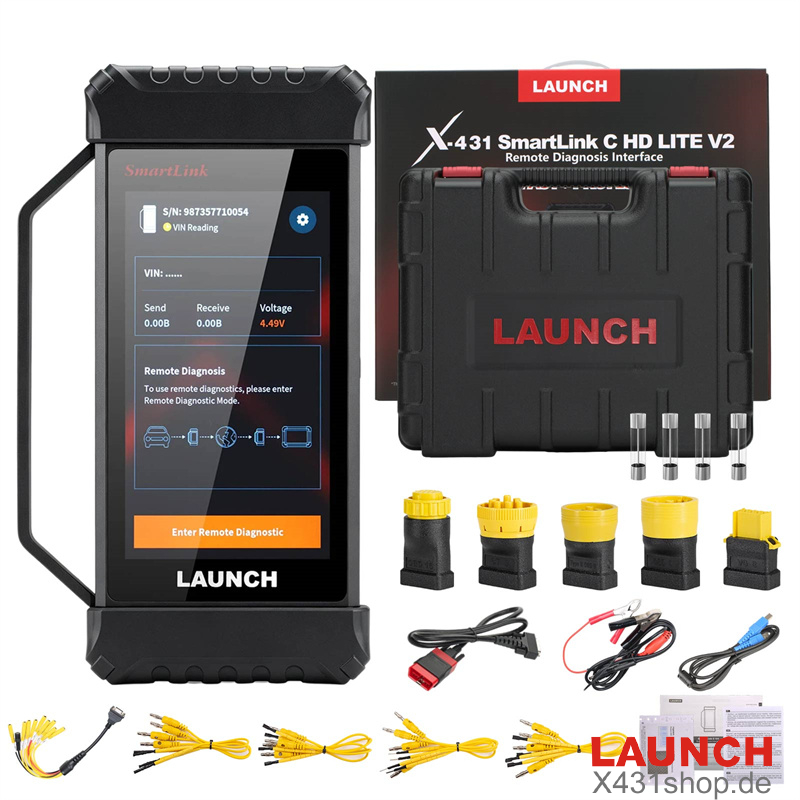

| Product | Launch X431 SmartLink C HD V2 | Launch X431 HD LITE V2 |
| Image |  |
 |
| Price | €864.00 | €657.00 |
| Compatible device | 10-inch X431 PRO series tablets: X431 V+ (PRO3), PRO3S+ V5.0, PRO3 APEX, PRO3 ACE |
8-inch X431 PRO series tablets: PRO V5.0, PROS V5.0, PRO TT, PRO DYNO, etc |
| Read Data Stream | Yes | Yes |
| Graphical visualization of special functions | Yes | Yes |
| AI Fault Repair | Yes | Yes |
| High Speed Diagnosis | Yes | Yes |
| High-Speed Scanning | Yes | Yes |
| Visualized Diagnostic Functions | Yes (graphical display of special functions, topology diagrams, and data streams) | Yes (graphical display of special functions, topology diagrams, and data streams) |
| Special Function | Yes, support 20 special functions incl. DPF regeneration, parameter setting, cylinder cut off compression test, service reset, injector programming, speed limit adjustment, idle speed adjustment, fan calibration, remote throttle, urea injection drive, deep DTC clearing, transmission adaptation, NOx sensor | Yes, support 20 special functions incl. DPF regeneration, parameter setting, cylinder cut off compression test, service reset, injector programming, speed limit adjustment, idle speed adjustment, fan calibration, remote throttle, urea injection drive, deep DTC clearing, transmission adaptation, NOx sensor |
| Package List | 1pc x X-431 SmartLink C V4 1pc x OBD 6 Integrated Diagnostic Connector (OBD 6) 1pc x Type II OBD-9 Integrated Diagnostic Connector (Type II OBD 9) 1pc x OBD 16 Integrated Diagnostic Connector (OBD 16) 1pc x JUMPER-10 Diagnostic Adapter Connector (JUMPER 10) 1pc x Caterpillar-9 Integrated Diagnostic Connector (CT 9) 1pc x VOLVO-8 Integrated Diagnostic Connector (VO 8) 1pc x HYUNDAI-16 Linear Diagnostic Connector (HY 16) 1pc x RENAULT-12 / Renault 12-PIN Integrated Diagnostic Connector (RE 12) 1pc x MAN-37 Integrated Diagnostic Connector (M 37) 1pc x BENZ-14 Integrated Diagnostic Connector (BZ 14) 1pc x MAN-12 Integrated Diagnostic Connector (M 12) 1pc x IVECO-38 Integrated Diagnostic Connector (IV 38) 1pc x IVECO-30 Integrated Diagnostic Connector (IV 30) 1pc x MITSUBISHI-12+16 Linear Diagnostic Connector (M/F 12+16) 1pc x DB15M to HDB15F Test Mainline (includes HD15M to OBDII 16 male integrated test connector) 4pcs x Electrically controlled switching line 9 4pcs x Electrically controlled switching line 8 4pcs x Electrically controlled switching line 7 4pcs x Electrically controlled switching line 6 4pcs x Electrically controlled switching line 5 4pcs x Electrically controlled switching line 4 4pcs x Electrically controlled switching line 3 4pcs x Electrically controlled switching line 2 4pcs x Electrically controlled switching line 1 1pc x RJ45 to RJ45 connection cable 1pc x USB A-type to B-type cable 1pc x Cigarette Lighter line 1pc x Dual Clamp Power Line 2pcs x Fuse AC250V/5A, 6×30 mm 4pcs x Fuse AC250V/5A, 5×20 mm 1pc x GPSR Safety warning language 1pc x Universal PIN Envelope 1pc x Quick Start |
1 pc x X-431 SmartLink C V4 1 pc x OBD 6 integrated diagnostic connector (OBD 6) 1 pc x Type II OBD 9 integrated diagnostic connector (Type II OBD 9) 1 pc x OBD 16 integrated diagnostic connector (OBD 16) 1 pc x JUMPER-10 diagnostic connector(JUMPER 10) 1 pc x Caterpillar-9 integrated diagnostic connector (CT 9) 1 pc x VOLVO 8 / Volvo 8 integrated diagnostic connector (VO 8) 1 pc x DB15M to HDB15F test main cable (including HD15M to OBD II 16 pin male integrated test connector) 1 pc x USB Type A to Type B cable 4 pcs x Electronic control adapter cable 1 4 pcs x Electronic control adapter cable 6 4 pcs x Electronic control adapter cable 7 4 pcs x Electronic control adapter cable 8 1 pc x Double clamp power cable 4 pcs x Fuse SFC AC250V/5A, 5×20 mm 1 pc x Universal PIN Envelope 1 pc x Quick Start 1 pc x GPSR Safety warning language |
SmartLink C V4 VCI Connector Configuration:
| CPU | dual-core 1.7G |
| Working Voltage | DC 8V ~ 36V |
| Screen | 5 inches, 1280*720 |
| RAM | 1G |
| Storage | 8G |
| Communication | Local Diagnosis: WIFI/BT/USB |
| SmartLink Remote Diagnosis: Wi Fi / Wired | |
| WIFI | WIFI 6 |
| Bluetooth | BT5.0 |
| I/O | DB15 female, USB-B, RJ45, DC IN |
| Working Tenperature | 0℃ ~ 50℃ |
| Size | 187.6*32.8*106mm |
| Weight | 0.35kg |
Go with X-431 SmartLink C HD V2 if:
- You use a 10-inch LAUNCH tablet: Compatible with X-431 V+, PRO3, PRO3S+, PRO3 APEX, and PRO3 ACE.
- You need broad multi-brand coverage: Includes factory adapter plugs for MAN, IVECO, Mercedes-Benz, Renault, Hyundai, and Mitsubishi trucks.
- You run complex electrical diagnostics: Includes electronic switching lines 1–9, a cigarette lighter power cable, an RJ45 network cable, and extra fuse sets.
Go with X-431 SmartLink C HD LITE V2 if:
- You use an 8-inch LAUNCH tablet: Designed for X-431 PRO V5.0, PROS V5.0, PRO TT, and PRO DYNO.
- You service mainstream heavy-duty trucks: Comes with essential daily connectors including OBD 6, Type II OBD 9, OBD 16, Caterpillar-9, Volvo-8, and JUMPER-10.
- You want a cost-effective solution: Saves €207 by omitting seldom-used legacy plugs, making it ideal for standard maintenance work.
