This guide walks you through the Top 5 Launch X431 tools in 2026, explaining their strengths, limitations, and ideal use cases to help you make a confident purchase decision.

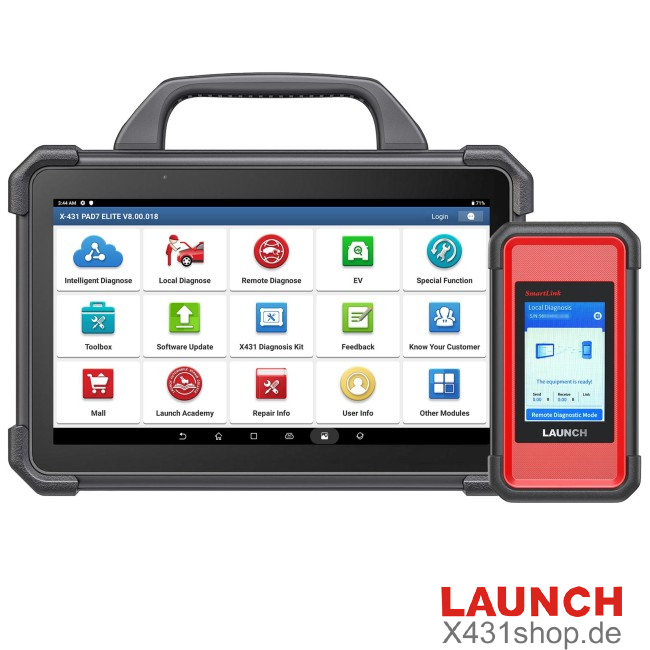

Top 1. Launch X431 PAD VII Elite
Ideal for: Large workshops, dealerships, and professionals who require top-tier diagnostics and ECU programming.
Advantages:
- Ultimate Performance: Equipped with the most powerful hardware configuration, including an 8-core processor, 8GB RAM, 256GB storage, and a large 13.3-inch high-resolution display.
- Advanced ECU Programming: Built-in J2534/RP1210 allows direct ECU programming for a wide range of brands, including Mercedes-Benz, BMW, VW, Audi, Ford, Porsche, Hyundai, Kia, and more.
- Maximum Expansion Options: Fully compatible with heavy-duty truck diagnostics, EV systems, motorcycles, and advanced ADAS calibration.
- Premium Hardware Design: Features both front and rear cameras and a high-capacity battery for extended working hours.
Limitations:
- Premium Price: The most expensive model in the Launch X431 lineup.
- Reduced Portability: Large screen size makes it less convenient for mobile use.
If cost is not your main concern and you want the most future-proof Launch X431 tool available, PAD VII Elite is the ultimate professional solution.

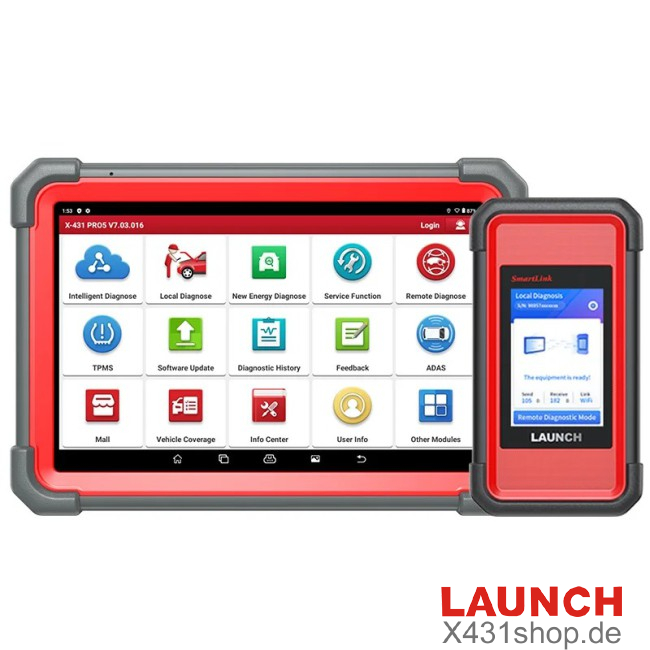

Top 2. Launch X431 PRO5
Ideal for: Professional technicians seeking strong diagnostic and ECU programming capabilities in a more compact tablet format.
Advantages:
- Reliable Performance: Smooth operation with a 4-core CPU, 4GB RAM, and 64GB storage on a clear 10.1-inch screen.
- ECU Programming Support: Supports online ECU programming for Mercedes-Benz and BMW.
- Professional Connectivity: Integrated J2534/RP1210 pass-thru functionality.
- Expandable Platform: Compatible with ADAS, EV, and heavy-duty add-on modules.
Limitations:
- Mid-to-High Price Range: Costs more than non-programming models.
- No Front Camera: Compared to PAD VII, camera features are more limited.
PRO5 offers an excellent balance of power, programming capability, and portability—ideal for professionals who don’t need the largest tablet.

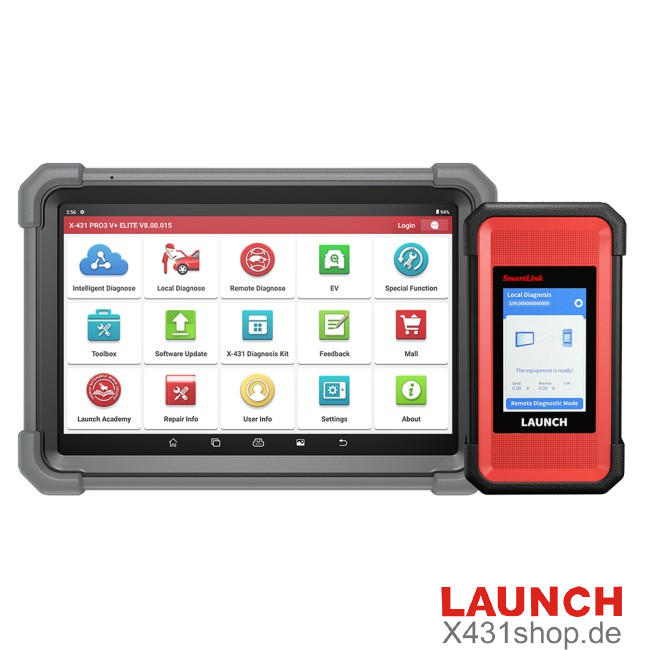

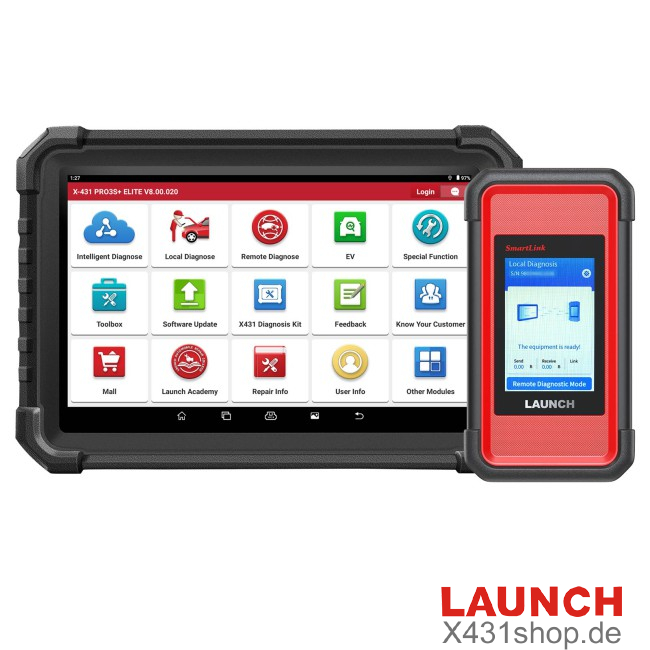

Top 3. Launch X431 PRO3S+ Elite / PRO3 V+ Elite
Ideal for: Repair shops that want comprehensive diagnostic coverage and expandability at a more accessible price point.
Advantages:
- Complete Diagnostic Coverage: Supports full-system diagnostics, guided functions, ECU coding, remote diagnosis, DoIP, and CAN FD.
- Flexible Expansion: Supports heavy-duty diagnostics (with additional box), EV systems, motorcycles, and ADAS calibration.
- Two Screen Options: Available in 10.1-inch (PRO3S+) and 8-inch (PRO3 V+) versions.
Limitations:
- No Built-in ECU Programming: Does not support ECU flashing or J2534 programming.
- Additional Hardware Required for Trucks: Heavy-duty diagnostics require an extra module.
These models deliver outstanding value and are ideal for shops that need broad functionality without in-house ECU programming.

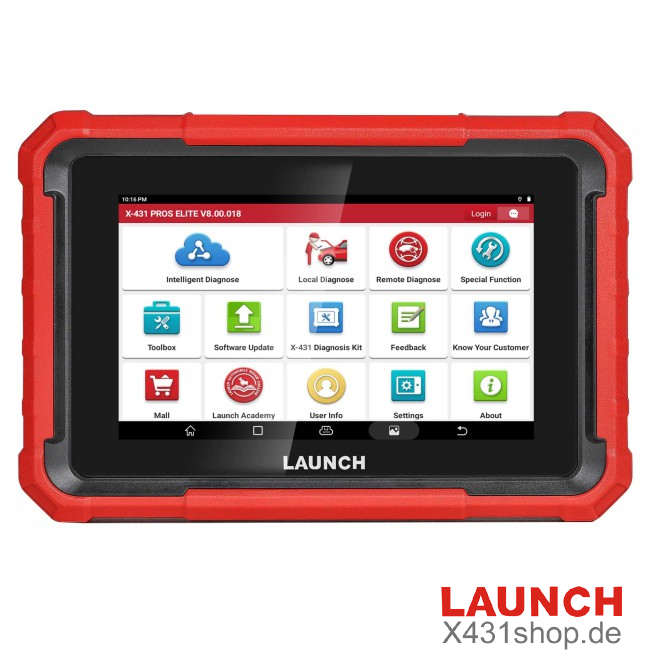

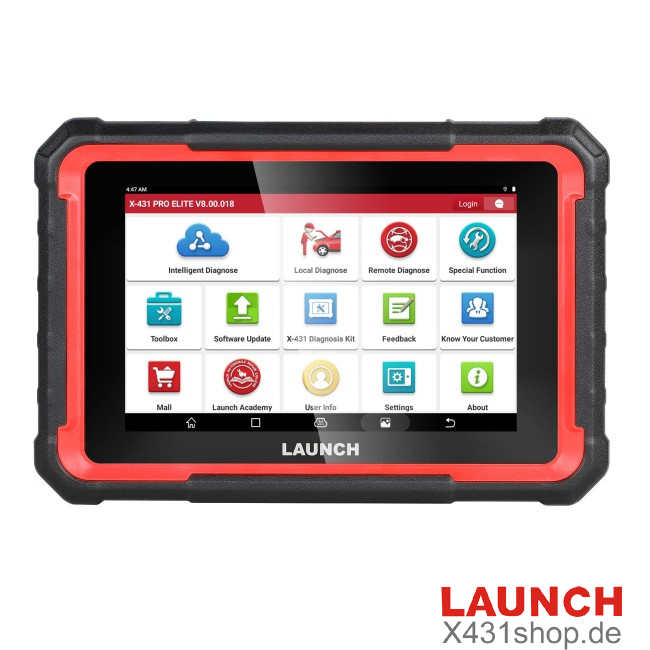

Top 4. Launch X431 PROS Elite / X431 PRO Elite
Ideal for: Mobile mechanics and small workshops that prioritize portability.
Advantages:
- Compact and Lightweight: 7-inch and 8-inch tablets are easy to carry and use in tight working environments.
- Professional Diagnostics: Supports standard diagnostics, ECU coding, service resets, and remote diagnosis.
- Modern Protocol Support: Compatible with DoIP and CAN FD.
Limitations:
- Limited Expansion: No support for ADAS calibration or heavy-duty diagnostics.
- No ECU Programming: Does not include J2534 or pass-thru programming.
- Smaller Display: Less on-screen data compared to larger tablets.
A strong choice for technicians who need professional diagnostics in a highly portable format.

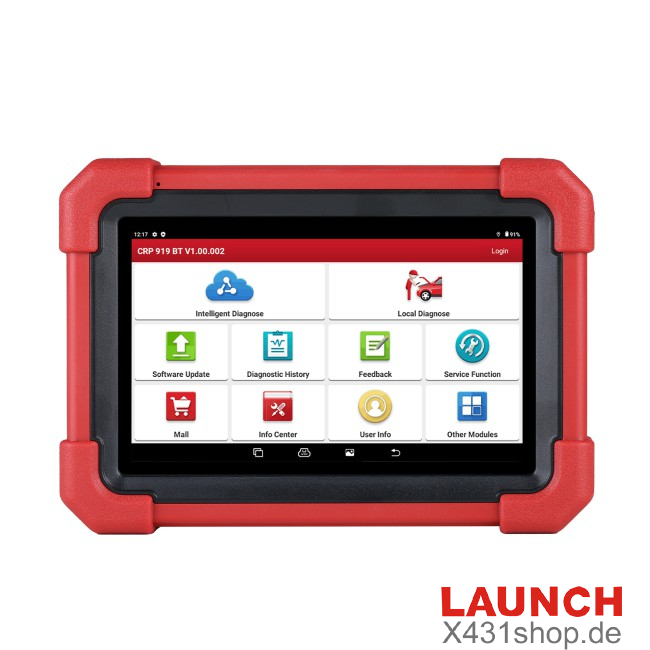

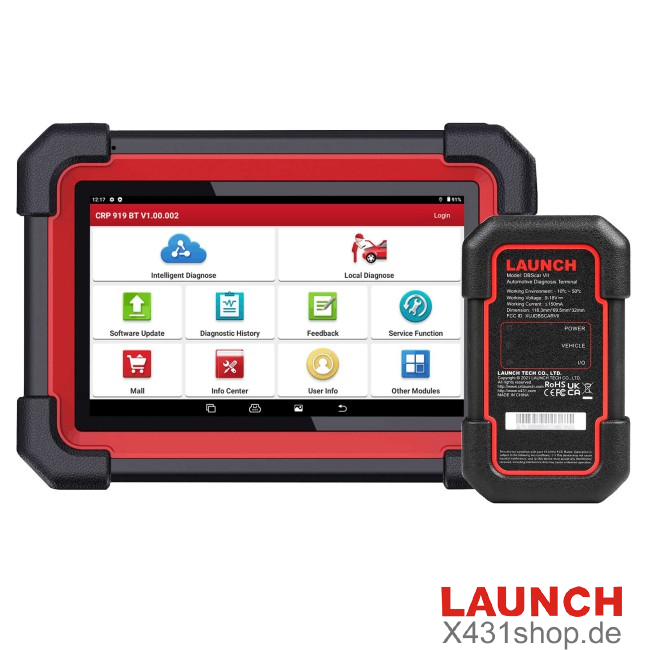

Top 5. Launch CRP919EBT / CRP919XBT
Ideal for: Entry-level users, DIYers, and small shops with budget constraints.
Advantages:
- Budget-Friendly Option: One of the most affordable professional Launch X431 tools.
- Solid Core Functions: Supports full-system diagnostics, service functions, and optional key programming.
- Essential Add-ons Included: IMMO software and TPMS support are included.
Limitations:
- No Advanced Modules: Does not support ADAS, heavy-duty diagnostics, oscilloscope, or sensor box.
- Basic Hardware Specs: Smaller screen and lower overall performance.
- No Programming Interfaces: Lacks J2534, D-PDU, and topology mapping.
A practical and economical diagnostic tool for everyday vehicle maintenance without advanced testing needs.
Comparison Table
| Items | X-431 PAD 7 Elite | X431 PRO5 | X431 PRO3S+ Elite/PRO3 V+ Elite | X431 PROS Elite/PRO Elite | CRP919EBT/ | |
| Price | € 2,199.00 | €1,061.00 | €831.00 | €406.00/
€415.00 |
€353.00/
€335.00 |
|
| Hardware Configurations | ||||||
| Connector | SmartLink C | SmartLink C | SmartLink C | – | DBSCar VII | |
| CPU | 8-Core 2.0GHz | 4-Core 2.0GHz | 4-Core 2.0GHz | 4-Core 2.0GHz | 4-Core 2.0GHz | |
| Operating system | Android 9.0 | Android 10.0 | Android 10.0 | Android 10.0 | Android 10.0 | |
| RAM | 8GB | 4GB | 4GB | 4GB | 4GB | |
| ROM | 256GB | 64GB | 64GB | 64GB | 64GB | |
| Screen Size | 13.3 inch | 10.1 inch | 10.1 inch | 8 inch | 7 inch | |
| Screen Resolution | 1920×1080 | 1280×800 | 1280×800 | 1280×800 | 1024×600 | |
| Front Camera | 8.0 MP | 5.0 MP | – | – | – | |
| Rear Camera | 13.0MP | 8.0 MP | 8.0 MP | 8.0 MP | 8.0 MP | |
| Working Temperature | 0～50℃ | 0～50℃ | 0～50℃ | 0～50℃ | 0～50℃ | |
| Communication | Wi-Fi/Bluetooth/USB | Bluetooth/USB | Bluetooth/USB | Main Cable | Bluetooth/USB | |
| Dimension | 365x295x73(mm) | 274×190.5×39.5(mm) | 274*190.5*40.5 (mm) | 256x172x40.6 (mm) | 213.8x151x39.5（mm） | |
| Battery Capacity | 71.1Wh (7.6V,9360mAH) | 47.88Wh (7.6V,6300mAH) (200.85g) | 47.88Wh (7.6V,6300mAH) (200.85g) | 6000mAh, 3.7V | 47.88Wh (7.6V,6300mAH) (200.85g) | |
| Main Features | ||||||
| Full-System Diagnostic | Yes | Yes | Yes | Yes | Yes | |
| Auto VIN | Yes | Yes | Yes | Yes | Yes | |
| Service Functions | 40 | 37 | 37 | 32 | 28 | |
| Active Test | Yes | Yes | Yes | Yes | Yes | |
| Guided Function | Yes | Yes | Yes | Yes | Yes | |
| ECU Coding | Yes | Yes | Yes | Yes | Yes | |
| ECU Programming | Yes | Yes (BMW, Benz) | No | No | No | |
| Repair Data | Yes | Yes | Yes | Yes | Yes | |
| Remote Diagnosis | Yes | Yes | Yes | Yes | Yes | |
| J2534 | Yes | Yes | Yes | No | No | |
| D-PDU/RP1210 | Yes | Yes | Yes | No | No | |
| DoIP | Yes | Yes | Yes | Yes | Yes (Need to buy DoIP cable separately) | |
| CAN FD | Yes | Yes | Yes | Yes | Yes | |
| Diagnostic Topology Display | Yes | Yes | Yes | No | No | |
| Pin Detection | Yes | Yes | Yes | Yes | Yes | |
| Inspection plan | Yes | Yes | Yes | Yes | Yes | |
| Mall | Yes | Yes | Yes | Yes | Yes | |
| Heavy-duty Add-on | Yes (need X431 B Box) | Yes (need X431 B Box) | Yes (need X431 B Box) | No | No | |
| EV Kit Add-on | Yes | Yes | Yes | No | No | |
| Motorcycle Diagnostic Adapter Kit (Includes Activation Card) | Yes | Yes | Yes | Yes | Yes | |
| OBD1 Connector | Yes | Yes | Yes | Yes | Yes | |
| O2-2 Scopebox Oscilloscope | Yes | Yes | Yes | Yes | No | |
| S2-2 Sensorbox | Yes | Yes | Yes | Yes | No | |
| VSP-600 Videoscope | Yes | Yes | Yes | Yes | Yes | |
| X431 ADAS Calibration (need ADAS calibration device) |
Yes | Yes | Yes | Yes | No | |
| X431 IMMO Software Pack | Yes | Yes | Yes | Yes | Yes | |
| Key Programming (need X-Prog3) |
Yes | Yes | Yes | Yes | Yes | |
| X431 Key Programmer | Yes | Yes | Yes | Yes | Yes | |
| GIII-PC Adapter | Yes | Yes | Yes | Yes | Yes | |
| i-TPMS | Yes | Yes | Yes | Yes | Yes | |
| BST360 Battery Tester | Yes | Yes | Yes | Yes | Yes | |
| SGW Function License ($1151)-for European users: 1.Mercedes-Benz gateway license (1 year): for Benz 2020- 2.FCA & Maserati gateway license (1 year) 3.Renault & Dacia (20 connections) 4.VAG SFD (1 year) |
Yes | Yes | Yes | Yes | Yes | |
| SGW Function License ($899)-for North American users: 1.FCA & Maserati gateway license (1 year) 2.Renault & Dacia (20 connections) 3.VAG SFD (1 year) |
Yes | Yes | Yes | Yes | Yes | |
| FCA SGW (extra purchase） |
Yes | Yes | Yes | Yes | Yes | |
| VAG SGW License (extra purchase） | Yes | Yes | Yes | Yes | Yes | |
| Renault & Dacia SGW License (extra purchase） | Yes | Yes | Yes | Yes | Yes | |
| Mercedes-Benz gateway license (purchase European SGW Function License） | Yes | Yes | Yes | Yes | Yes | |
Buying Recommendations
- Choose X-431 PAD 7 if you need maximum performance, ECU programming, and full expansion for cars, trucks, and EVs.
- Choose PRO5 if you want ECU programming in a more compact and cost-effective tablet.
- Choose PRO3S+ Elite / PRO3 V+ Elite if you want the best overall feature set without ECU programming.
- Choose PROS Elite / PRO Elite if portability is your top priority.
- Choose CRP919EBT / CRP919XBT if you need reliable diagnostics at the lowest cost.
