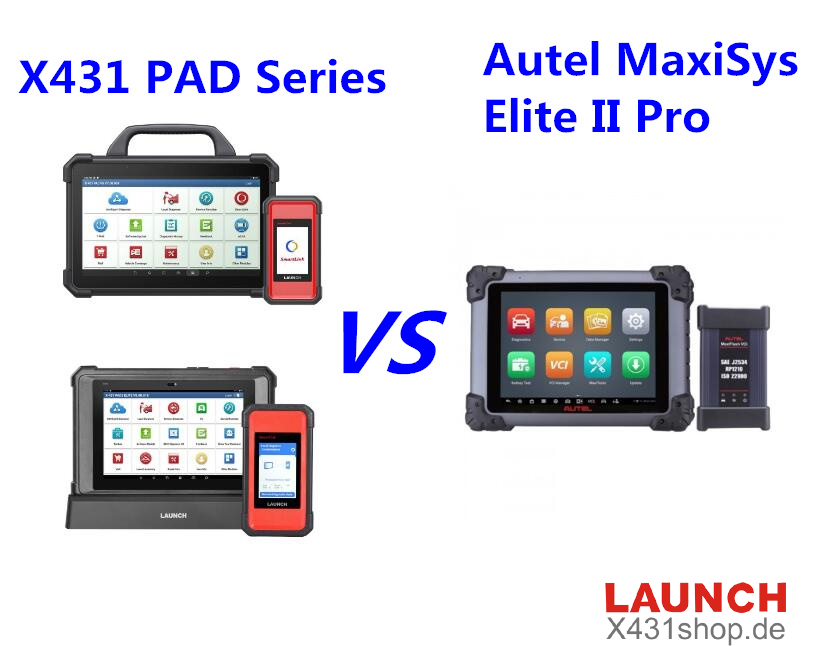

Compare Launch X431 PAD (PAD5/PAD7) Tablets vs Autel MaxiSys Elite II Pro – Find Out the Key Differences Now.
Comparison table:

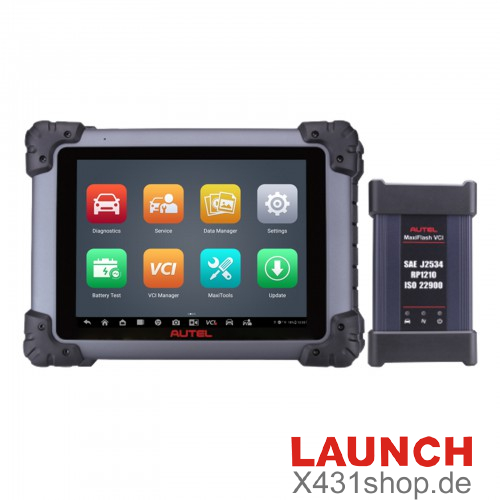

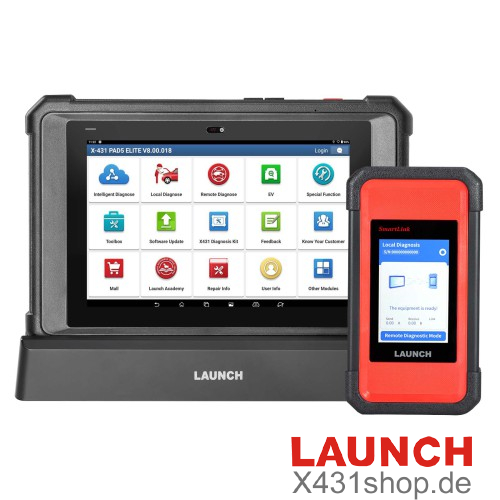

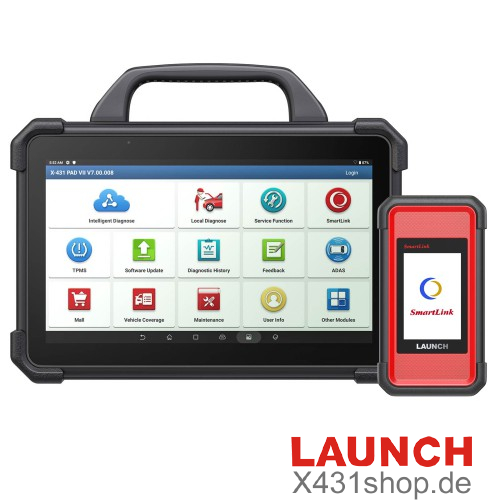

| Product | X431 PAD V ELITE | X431 PAD VII ELITE | Autel MaxiSys Elite II Pro |
| Image |  |
 |
 |
| Hardware configuration | |||
| CPU | 2.0GHz 8-core | 2.0GHz 8-core | 8-core (2.2GHz 4-core + 1.8GHz 4-core) |
| Operating System | Android 11 | Android 9 | Android 10 |
| Memory (RAM) | 4GB | 8GB | 4GB |
| Storage | 256GB | 256GB | 128GB |
| Display | 10.1 inch | 13.3 inch | 9.7 inch |
| Resolution | 1920×1200 | 1920×1080 | 2048×1536 |
| Front Camera | 8 MP | 8 MP | – |
| Rear Camera | 13 MP | 13 MP | 16 MP |
| Operating Temperature | 0~50℃ | 0~50℃ | 0~50℃ |
| Communication | Wi-Fi/Bluetooth/USB | Wi-Fi/Bluetooth/USB | Wi-Fi/Bluetooth/USB |
| Battery | 9360mAh, 3.8V | 9360mAh, 7.6V | 11000mAh, 3.7V |
| Software Function | |||
| Full System Diagnosis | Yes | Yes | Yes |
| VIN Code Auto Recognition | Yes | Yes | Yes |
| Special Functions | 41 (including multi-VIN detection and immobilizer programmer) | 41 (including multi-VIN detection and immobilizer programmer) | 40 |
| Actuation Test | Yes | Yes | Yes |
| VAG Guided Functions | Yes | Yes | Yes |
| BMW Guided Functions | Yes | Yes | – |
| ECU Coding | Yes | Yes | Yes |
| ECU Programming | Yes | Yes | Yes |
| Repair Information | Yes | Yes | Yes |
| Remote Diagnosis | Yes | Yes | Yes |
| J2534, D-PDU/RP1210 | Yes | Yes | Yes |
| DoIP, CAN FD | Yes | Yes | Yes |
| Gateway Unlock | Yes (FCA/Renault/VAG/European BENZ) | Yes (FCA/Renault/VAG/European BENZ) | Yes (FCA/Renault) |
| Paid Database | Yes (HaynesPro) | Yes (HaynesPro) | Yes (MOTOR) |
| Topology Map | Yes | Yes | – |
| Diagnostic Feedback | Yes | Yes | Yes |
| Software Mall | Yes | Yes | – |
| ADAS Calibration, TPMS, Key Programmer, Immobilizer, Oscilloscope, Sensor, Multimeter, Insulation Tester, Current Clamp (Optional/Expandable) | Yes (Optional) | Yes (Optional) | – |
| Endoscope, Battery Detection Clamp (Optional/Expandable) | Yes (Optional) | Yes (Optional) | Yes (Optional) |
| Free Software Upgrade Period | 2 Years | 2 Years | 2 Years |
| Languages | 23+ | 23+ | 21+ |
| Data Stream (PIDS) | 4-IN-1 | 4-IN-1 | 5-IN-1 |
| Software Packages (Optional Expansion) | New Energy, Commercial Vehicles, Immobilizer, Motorcycle | New Energy, Commercial Vehicles, Immobilizer, Motorcycle | Commercial Vehicles |
Launch X431 PAD V vs X431 PAD VII: Which Diagnostic Tool Is Right for You?
When choosing between the Launch X431 PAD series and Autel MaxiSys Elite II Pro, understanding their key differences ensures you select the perfect tool for your workshop needs.
Key Advantages of Launch X431 PAD Series:
-
Exclusive BMW Support: Full guided functions unavailable on Elite II Pro
-
Advanced Topology Mapping: Visual network diagnostics not offered by Autel
-
Expanded Gateway Access: Unlock FCA, Renault, VAG, and Mercedes-Benz with HaynesPro database
-
Superior Expandability: Add software packages for New Energy, Commercial Vehicles, Motorcycles, and Immobilizer systems
-
Better Hardware: Larger displays (13.3″ PAD VII), up to 8GB RAM, 256GB storage, and advanced cameras
-
Broader Language Support: 23+ languages vs Autel’s 21
Core Capabilities:
-
Smartlink Remote Diagnosis
-
High-Speed CAN/CAN FD/DoIP/J2534 Support
-
ECU Programming & SGW Gateway Access
-
Diagnostic Plans & Pin Detection
-
Mall for Software & Hardware Expansion
Choosing Guide:
X431 PAD V Elite – Perfect balance of advanced features and value
X431 PAD VII Elite – Ultimate performance with largest display and full programming support
Autel Elite II Pro – Only if you rarely work with BMWs and don’t need topology mapping
For professionals needing future-proof capabilities and maximum expandability, the Launch X431 PAD series delivers superior long-term value and broader functionality.
