This tutorial explains how to purchase and activate the ECU Flashing function on the Launch X431 PRO3 LINK HD (X431 V+ SmartLink HD) diagnostic tool.
By following the steps below, users can quickly complete the activation and start performing ECU online programming.
Step 1: Enter the Software Store
Open the device and navigate through the following menu:

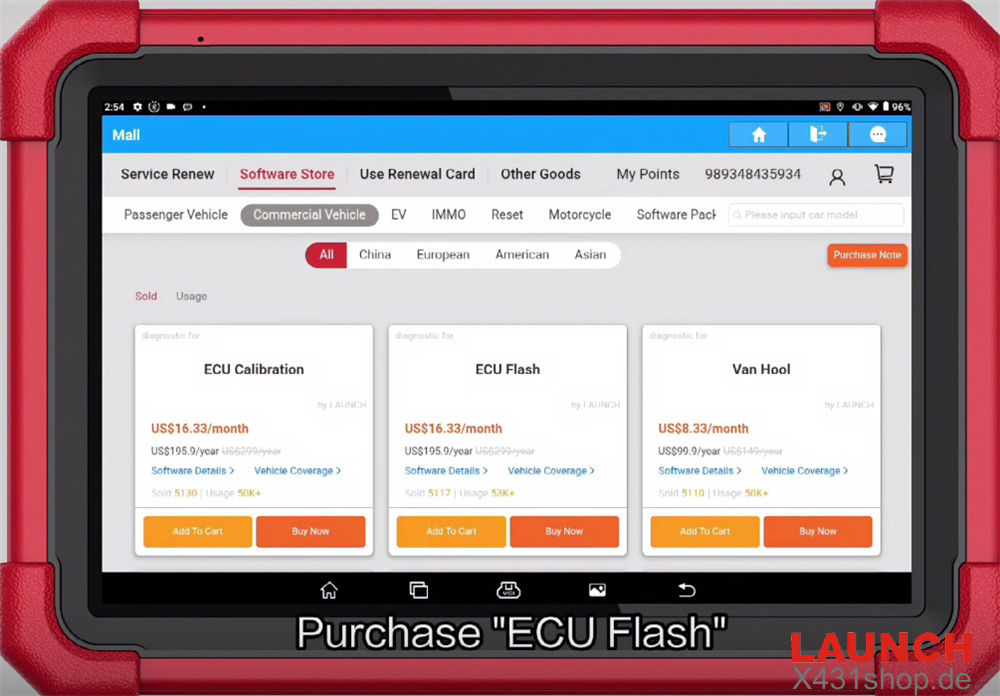

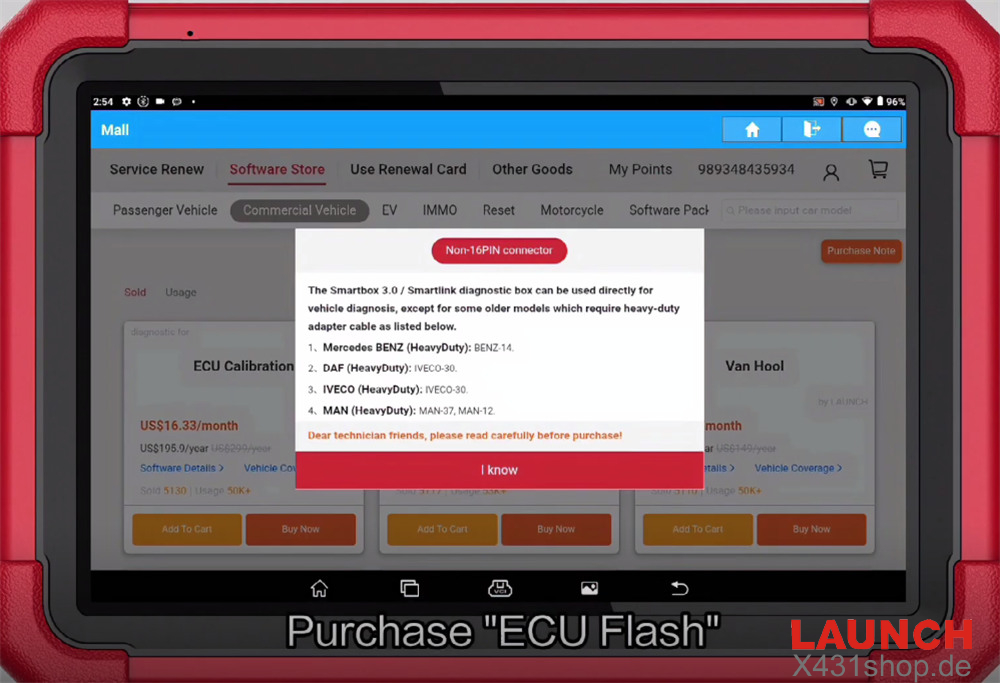

Mall → Software Store → Commercial Vehicle → ECU Flash

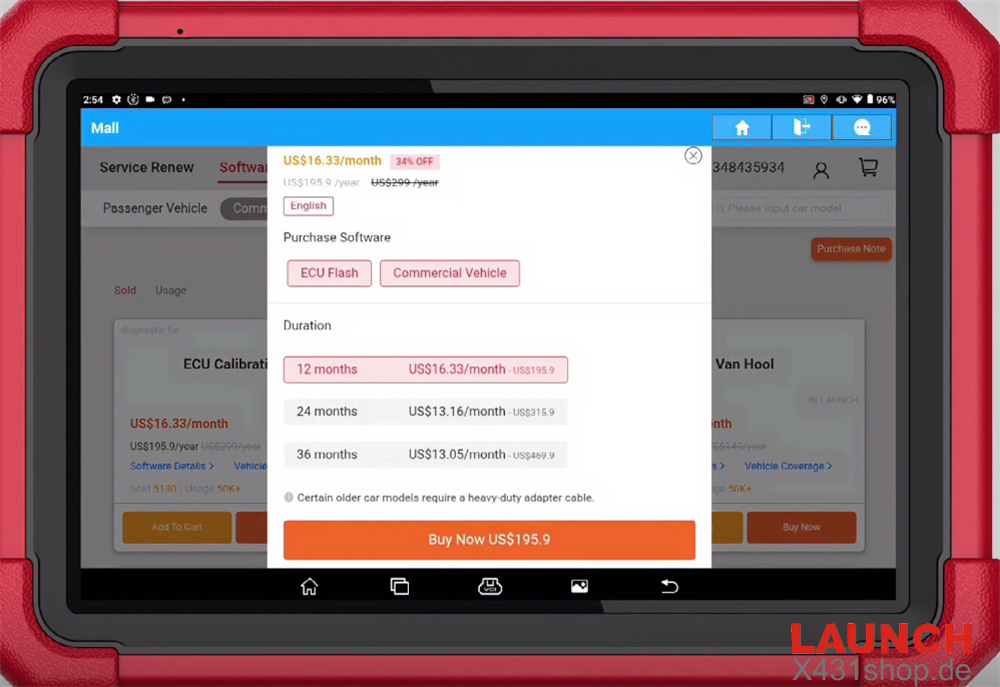

Step 2: Select a Subscription Plan
Three subscription options are available:
12 Months
24 Months
36 Months

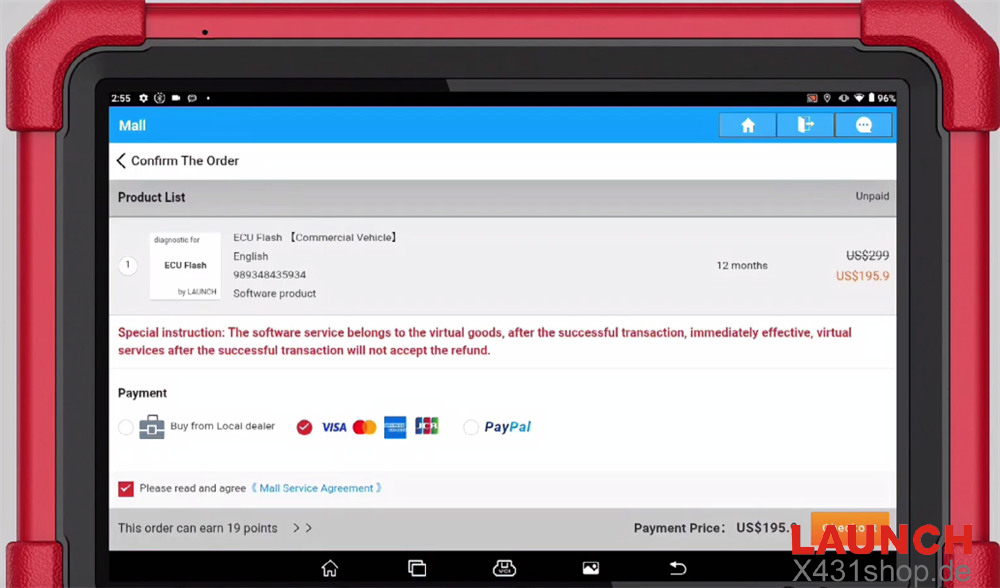

Choose the plan that suits your needs, then proceed to confirm the purchase.
Step 3: Download the Purchased Software
Once the purchase is completed successfully, download the ECU Flash software.
Next:
Exit the X431 APP.

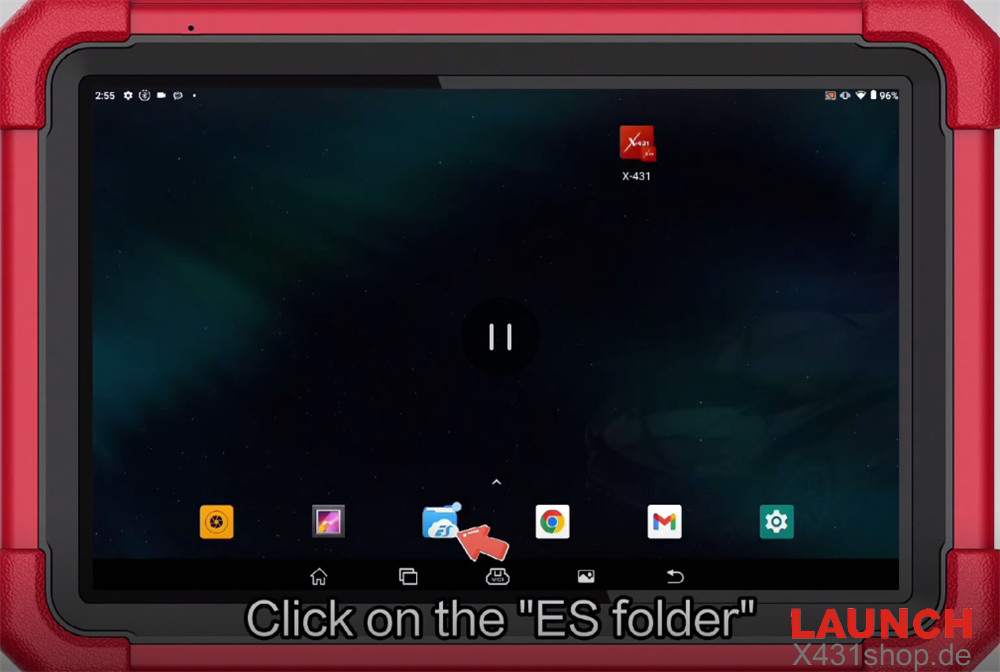

Open the ES File Manager (ES Folder).

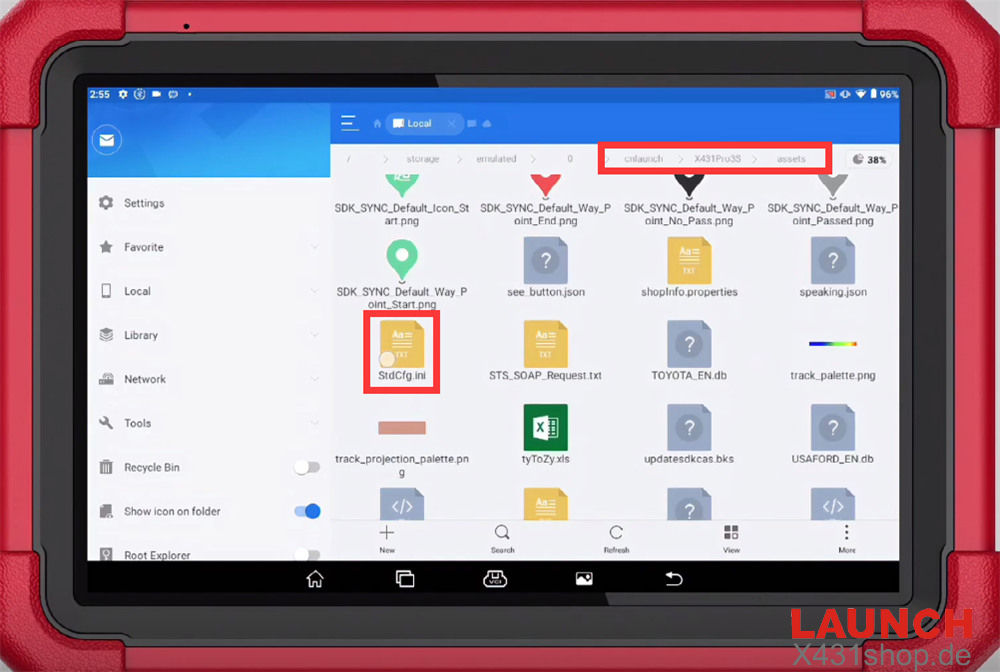

Step 4: Locate the Configuration File

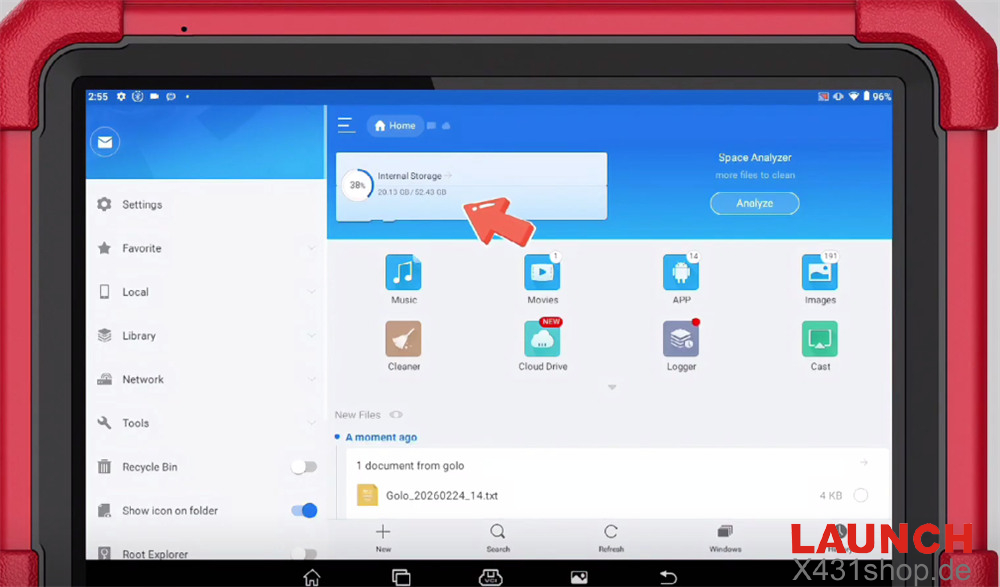

Navigate to the following directory:
/cnlaunch/X431Pro3S/assets/StdCfg.ini

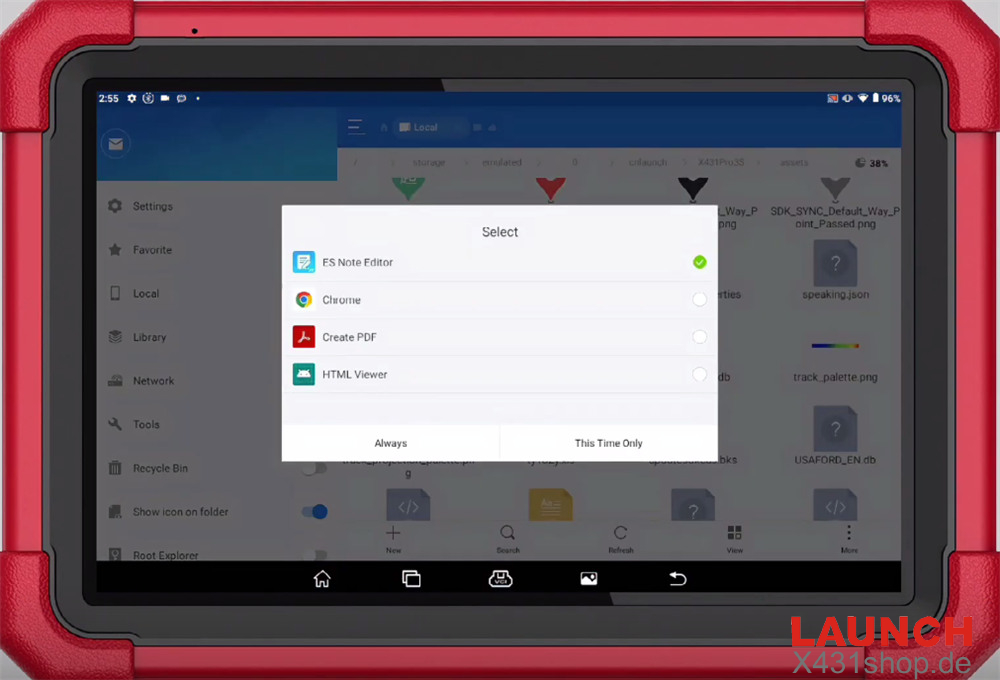

Open the file using ES Note Editor, then select “This Time Only” or “Always”.

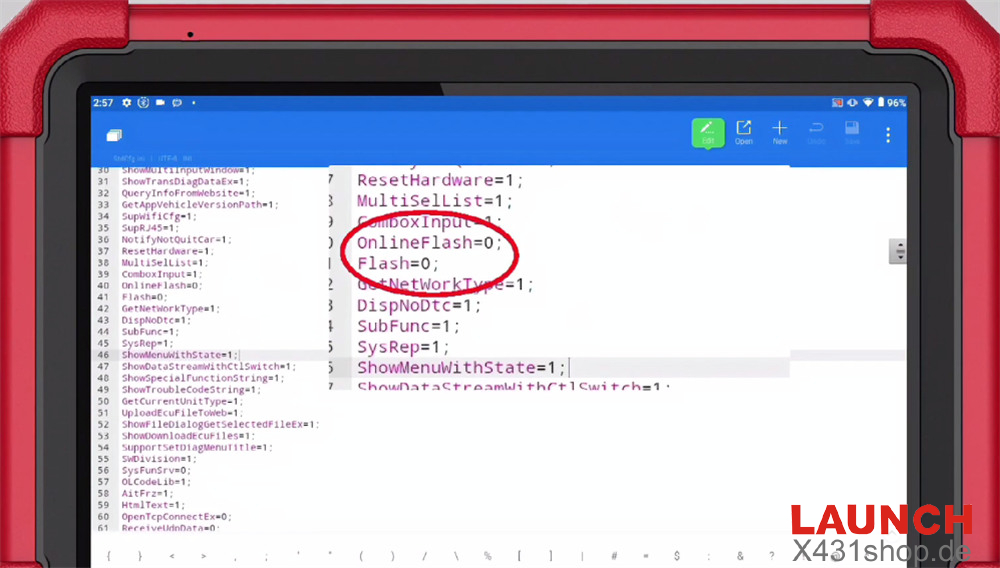

Step 5: Modify the Parameters
Inside the configuration file, edit the following values:
Change OnlineFlash=0 to OnlineFlash=1
Change Flash=0 to Flash=1

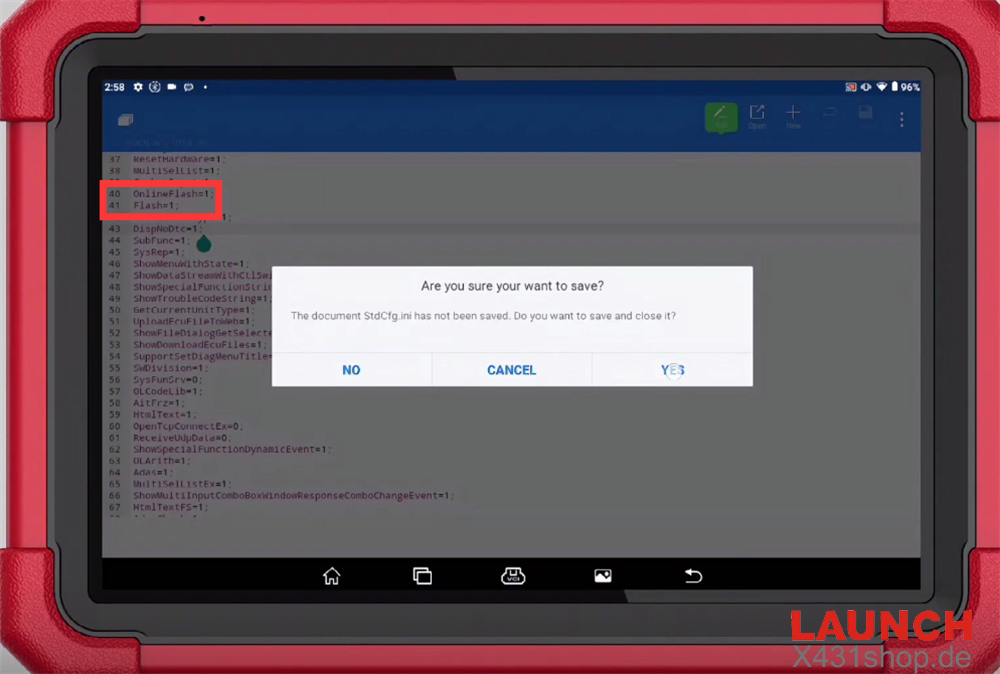

After editing, save the file.

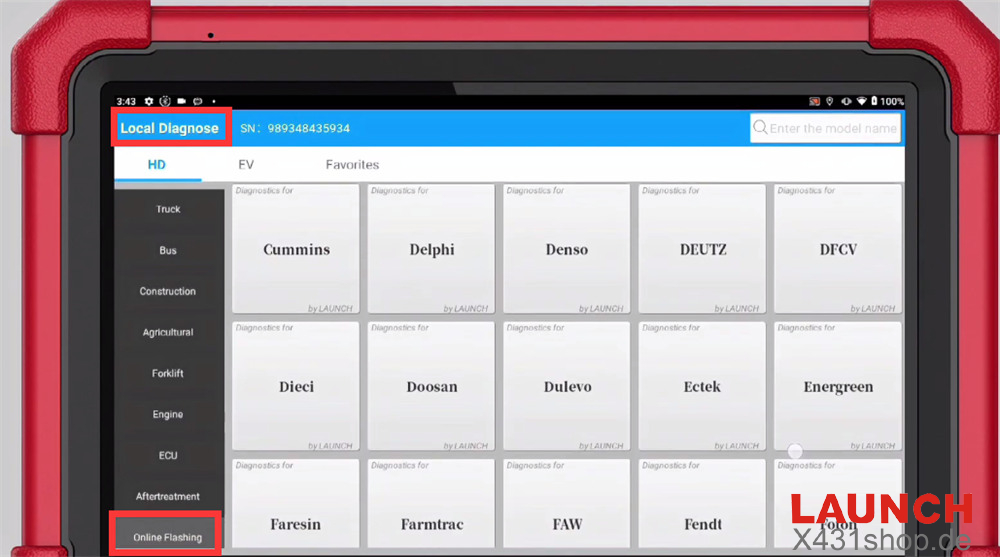

Step 6: Start ECU Flashing
Return to the X431 APP.
Follow this path:
Local Diagnose → Online Flashing
Currently, this function supports around 90 software programs, and more will be added in future updates.
